Introduction to Motor Protection Devices
Electric motors play a vital role in almost every industry today. Whether it’s a small pump, a conveyor belt, or a large industrial compressor, motors are constantly working behind the scenes. However, motors are sensitive electrical machines. Problems like overload, short circuits, or phase failure can quickly damage them if proper protection is not provided.
This is why motor protection devices are so important. They help prevent unexpected failures, reduce repair costs, and improve overall system safety. Among all available protection devices, MPCB or Motor Protection Circuit Breaker is widely used because it is reliable, compact, and specifically designed for motors.
What Is an MPCB and Why It Matters
Basic Definition and Purpose
An MPCB is a protective switching device specially designed to protect electric motors. Unlike regular circuit breakers, it is made to handle the unique starting and running characteristics of motors. It protects motors against overload, short circuit, and sometimes phase failure.
The main reason MPCBs matter is that motors are expensive and critical to operations. A single fault can stop production or damage equipment. Using an MPCB helps ensure motors run safely and efficiently for a long time.
Evolution of Motor Protection Technology
In the past, motor protection was achieved using fuses and separate thermal overload relays. While effective, these methods required more wiring, more space, and more maintenance. As electrical systems became more compact, the need for an integrated solution increased.
Modern MPCBs combine multiple protective functions into one device. This evolution has made motor control panels simpler, safer, and more cost-effective.
How an MPCB Works
Thermal Protection Mechanism
Thermal protection in an MPCB protects the motor from overload conditions. When a motor draws more current than its rated value for a long time, it begins to heat up. Inside the MPCB, a thermal element reacts to this heat and trips the breaker when the limit is exceeded.
This action disconnects the motor before overheating can damage the winding insulation. Thermal protection is especially important in applications where motors operate under varying loads.
Magnetic Short-Circuit Protection
Short circuits are dangerous and must be cleared instantly. The magnetic protection system in an MPCB responds to sudden high current caused by short circuits. When this happens, the breaker trips almost immediately, cutting off the power supply.
Trip Class and Sensitivity
MPCBs are designed to tolerate high starting currents that occur when motors start. This means they won’t trip unnecessarily during startup but will still react quickly to abnormal conditions.
Key Components of an MPCB
Adjustable Current Setting
One of the most useful features of an MPCB is its adjustable current range. This allows the device to be set according to the motor’s full-load current. Proper adjustment ensures accurate protection and prevents nuisance tripping.
Auxiliary Contacts and Indicators
Many MPCBs are equipped with auxiliary contacts and visual indicators. These features help operators identify whether a trip occurred due to overload or short circuit. This makes troubleshooting faster and improves maintenance efficiency.
Advantages of Using MPCB in Electrical Systems
Enhanced Motor Safety
By providing both overload and short-circuit protection, MPCBs significantly improve motor safety. They reduce the risk of overheating, electrical fires, and sudden motor failure. This protection directly contributes to longer motor life.
Cost and Space Efficiency
Using a single MPCB instead of multiple protective devices reduces panel space and wiring complexity. Over time, this also lowers installation and maintenance costs, making MPCBs a smart choice for modern electrical systems.
Applications of MPCB in Industry
Manufacturing and Process Plants
In industrial environments, motors often operate continuously. MPCBs protect motors used in conveyors, mixers, compressors, and machine tools, ensuring uninterrupted production and safe operation.
HVAC and Pumping Systems
MPCBs are widely used in HVAC systems and water pumps. These applications require reliable motor protection because failures can lead to system shutdowns and costly repairs.
MPCB vs MCB vs MCCB

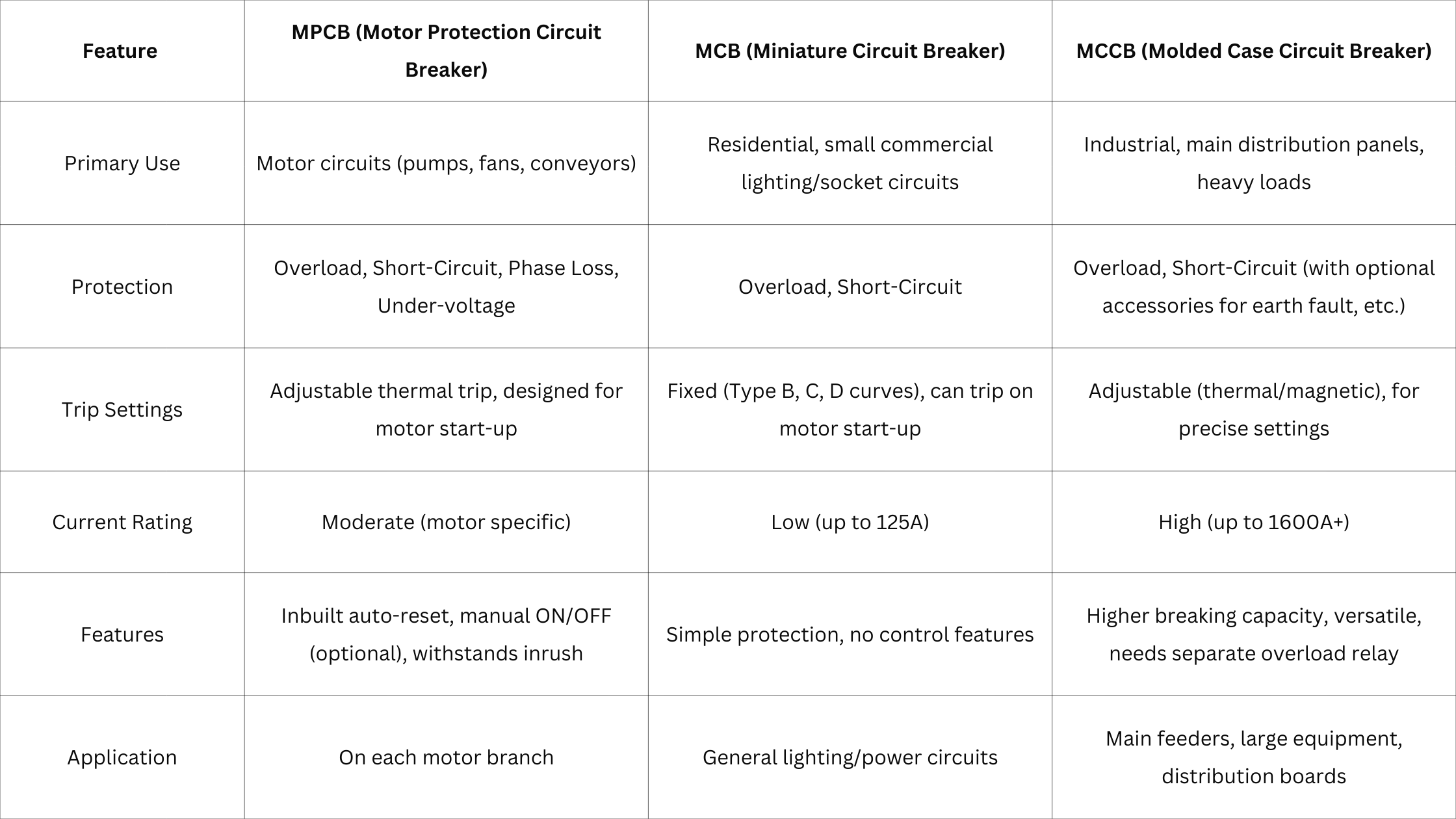

Comparison Table
.png)
Unlike MCBs and MCCBs, MPCBs are specifically designed to match motor characteristics.
Selection Criteria for MPCB
Motor Rating and Environment
Selecting the correct MPCB depends on motor current rating, voltage, and operating environment. Ambient temperature and installation conditions also play an important role. Choosing the right device ensures reliable performance and safety.
Installation and Maintenance Best Practices
Correct installation is essential for effective protection. The MPCB should be installed according to manufacturer guidelines, with proper tightening of terminals and correct current adjustment. Periodic inspection helps maintain long-term reliability.
Common Mistakes to Avoid
One common mistake is using a standard MCB instead of a motor-specific protection device. Another issue is incorrect current setting, which can cause frequent tripping or insufficient protection. Understanding motor requirements helps avoid these problems.
Frequently Asked Questions (FAQs)
1. What is the main purpose of an MPCB?
Its main purpose is to protect motors from overload and short-circuit conditions.
2. Can MPCB replace a fuse?
Yes, in many applications MPCBs replace fuses and overload relays combined.
3. Is MPCB suitable for all motors?
MPCBs are suitable for most low-voltage motors when selected correctly.
4. Does MPCB protect against phase failure?
Some MPCBs provide phase failure sensitivity, depending on the model.
5. Can MPCB be used for manual motor switching?
Yes, MPCBs can be used to manually switch motors on and off.
6. How often should MPCB be checked?
It should be checked during regular electrical maintenance schedules.
Conclusion
In simple terms, MPCB or motor protection circuit breaker is an essential device for protecting electric motors. It offers reliable protection, saves space, reduces costs, and improves system safety. For industries and commercial installations, using MPCBs is a smart and practical choice that ensures long-term motor performance.
